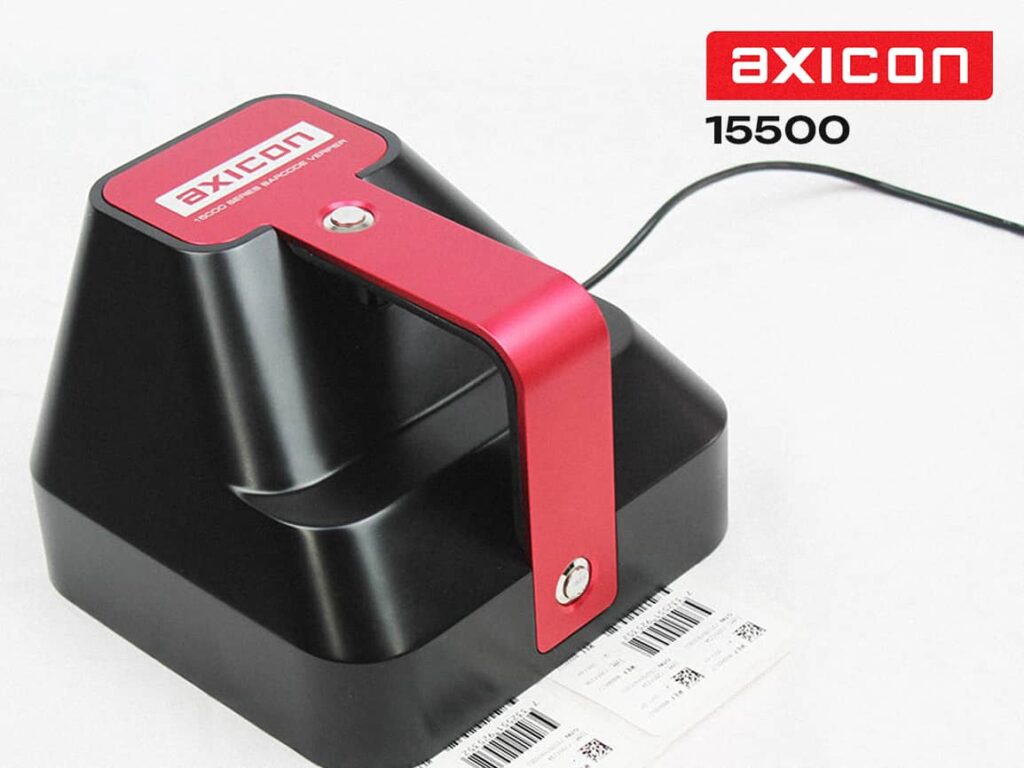

15500

Field of view: 95mm x 70mm

Smallest x-dimension of 0.200mm (aperture ref 05)

The Axicon 15000 series verifiers have been designed to read both two-dimensional and linear barcodes. GS1-128, Code 128, or Code 39 symbol

The 15000 uses a special array of LEDs and a CCD-based sensor to capture each barcode image before it is analysed. It is able to verify multiple barcodes in the same field of view, whether they are 2D or linear codes, and the user sees the results for each barcode by selecting the relevant barcode on the screen. QR Code, GS1 QR Code, Data Matrix and GS1 DataMatrix symbols can all be verified, as can any EAN/UPC, ITF-14, The Axicon 15000 series verifiers are powered solely from the USB2 port of a computer, so it is portable when used with a laptop computer. Typical Application: Smaller barcodes including retail point of sale (consumer unit) barcodes and also 2D barcodes such as Datamatrix, QR Code etc. Installation: Simply install the software on your computer, plug in the verifier and you can be confident that your barcodes are being checked to the highest standards. The standard software includes everything you could ever need from a barcode verifier. Traceability features include the ability to save raw data files which can also be used for remote diagnostics support capability. The Axicon Verifier, when used in conjunction with the accurately produced calibration sheet, forms an integral part of your ISO 9000 quality control procedures. Free software updates are downloadable from our website www.axicon.com, ensuring that your verifier will remain at the leading edge.
