We are the Authorised Axicon Australian Distributor!

– Beware of Grey importers of this product! These are companies who bring these units into Australia through other countries ignoring the certified supply channels set up by the original manufacturers – this could void your warranty!

Linear Barcode Verifiers – our standard range of 1D Verifiers

PC6015

The Axicon 6000 Series barcode verifier is aimed at verifying small size linear barcodes, (max 66mm), used in general distribution of retail products (EAN-13, EAN-8, UPC-A and UPC-E, GS1 Databar), on pharmaceutical products (Code 39, Italian pharmacode, code-128, RSS, Laetus Pharmacode*).

Click for more information

This easy to operate, plug and play system is perfect for product manufacturers, label printers, printers and packagers (cardboard, flexible, aluminium, etc), pre press studios. Laetus pharmacode verification requires dedicated additional software. SO/ANSI verification standards & traditional verification, symbology auto-dscrimination, automatic variable aperture, scan saving & loading, static reflectance meter, display of X dimension/magnification. product look-up option. individual bar/space dimensional analysis. Aperture automatically switchable between 3, 5, 6,10 and 20mil. Scan width 68mm (including light margin). Wavelength of light 660 nm. Weight: 230g. Size:165 x 75 x 55 mm. USB or RS232 (optional)

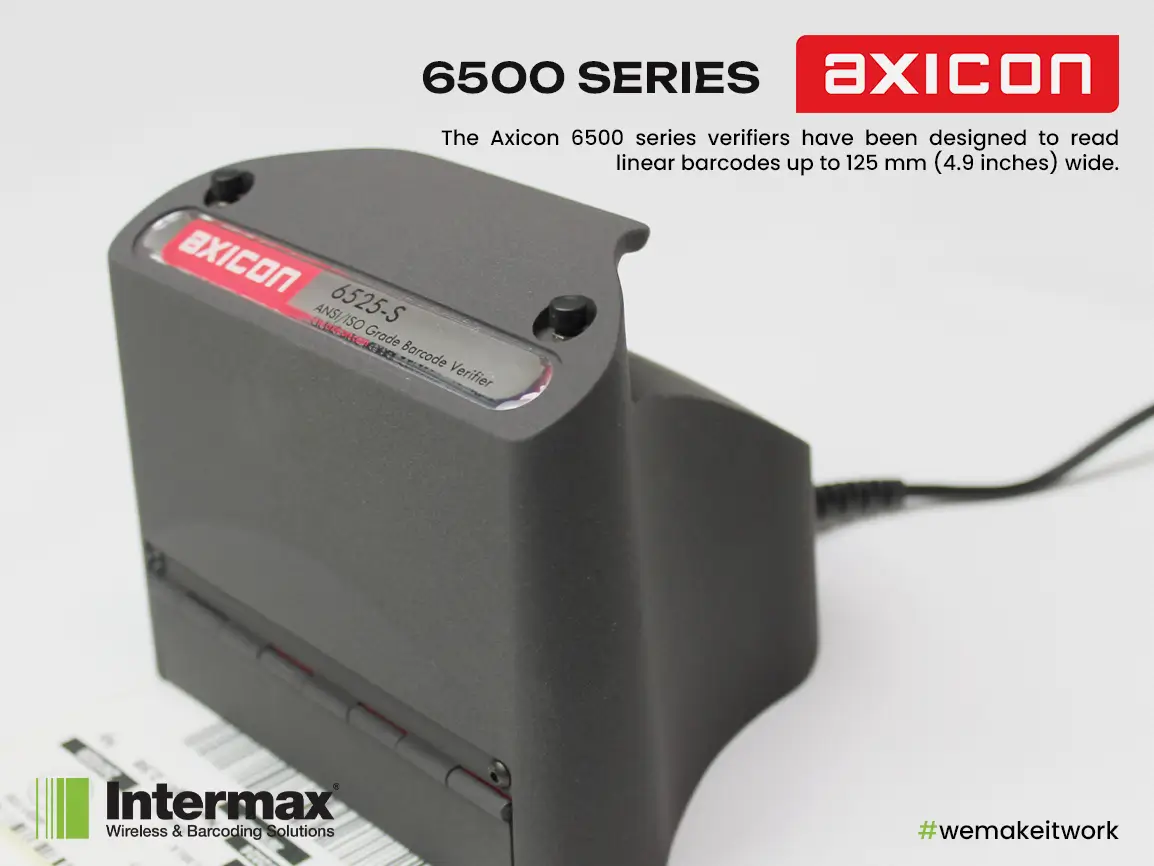

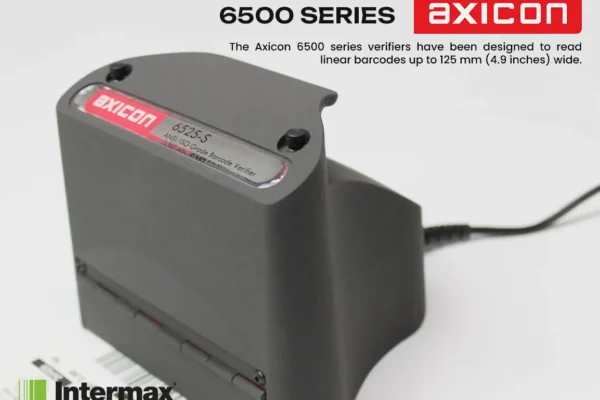

The Axicon 6500 Series barcode verifier is aimed at verifying small to medium size linear barcodes, (max 125 mm), used in general distribution of retail products (EAN-13, EAN-8, UPC-A and UPC-E, GS1 Databar, GS1-128, ITF-14 (max 95% magnification).

Click for more information

This easy to operate, plug and play system is perfect for product manufacturers, label printers, printers and packagers (cardboard, flexible, aluminium, etc), pre press studios. Thanks to its ideal combination of optical apertures and capture size, this verifier is the only one that can cater for all types of barcodes at most sizes. Large logistics barcodes such as ITF-14 barcodes at 100% magnification cannot be verified though. SO/ANSI verification standards & traditional verification, symbology auto-dscrimination, automatic variable aperture, scan saving & loading, static reflectance meter, display of X dimension/magnification. product look-up option. Individual bar/space dimensional analysis. CCD trigger ISO compliant linear barcode verifier. Aperture automatically switchable between 5, 6,10 and 20mil. Scan width 125mm (including light margin). Wavelength of light 660 nm. Weight: 180g. Size: 145 x 113 x 128 mm. USB or RS232 (optional)
PC7000

The Axicon 7000 Series barcode verifier is aimed at verifying large size linear barcodes, (up to 195 mm), used in general distribution of retail products (mainly GS1-128, ITF-14, pallet labels).

Click for more information

This easy to operate, plug and play system is perfect for product manufacturers, thermal transfer label printing operations, printers and packagers (corrugated cardboard). ISO/ANSI verification standards & traditional verification, symbology auto-dscrimination, automatic variable aperture, scan saving & loading, static reflectance meter, display of X dimension/magnification. product look-up option. Individual bar/space dimensional analysis. CCD trigger ISO compliant linear barcode verifier. Aperture automatically switchable between 8, 10 and 20mil. Scan width 195 mm (including light margin). Wavelength of light 660 nm. Weight: 1kg. Size:215 x 120 x 125 mm. USB or RS232 (optional)

FREE – Android App For Mobile Barcode Verification 20/09/2017

Axicon barcode verifiers can now be used on the move with either Android tablets or Android smartphones with this Free App now available FREE from Google Play.

This App allows anyone with an Axicon 6000, 6500 or 7000 series verifier to use it with an Android device, and record the results as easily as with a PC or laptop. The App can also be used to open the saved scan files, whichever linear barcode verifier has been used to create them.

“This new App gives our linear verifier users extra functionality, as they don’t need to use a PC or laptop to power the verifier. If it is easier to take the verifier to the product to check the barcode, then using the app with a tablet or smartphone makes this very straightforward,” explained Martin Morrison, managing director of Axicon Auto ID Limited.

Most users will need to use a USB OTG (on the go) adapter for their device, and they will need to check which one they require to connect to the verifier.



The app software is based upon the Axicon PC verifier software, so the results of the verification are displayed equally clearly, with the ISO/IEC grade together with details of the individual parameters.  The saved scan files records can be transferred to a PC and form the basis of any quality control system.

https://youtu.be/WIZbJFiliCg

S Range Linear Verifiers – Continuous Scan Models for multiple 1D Codes

The Axicon 6025 – S is designed for all barcodes where a 3, 5, 6,10 or 20mil aperture is mandatory up to a maximum width of 66mm including quiet zones. Consumer level (Point of Sale) barcodes whether being verified on film, cartons, bags, cans, pots or jars plus all other linear barcodes of a similar size.

Click for more information

Features & Benefits The “S” range of Axicon verifiers have a “Continuous Scan” feature. Just place the verifier over the barcode (or slightly above or below the barcode), press the trigger and slide the verifier over the code – in less than a second you can have results averaged over a maximum of 100 scans of the code at different points in the bar height Connectivity USB2 connection to PC. Please note that ‘S’ range verifiers cannot be used on MAC computers nor can they be used on the PV range of portable verifiers. Hardware CCD trigger ISO compliant linear barcode verifier. Aperture automatically switchable between 3, 5, 6,10 and 20mil. Scan width 68mm (including light margin). Wavelength of light 660 nm. Weight: 180g. Size:165 x 75 x 55 mm. Naturally, as you would expect, the new 6025-S verifier is still fully functional with all of the features of the Axicon verification range including AI checking, Genspec checking, Product Lookup, Job Referencing, User Data, etc

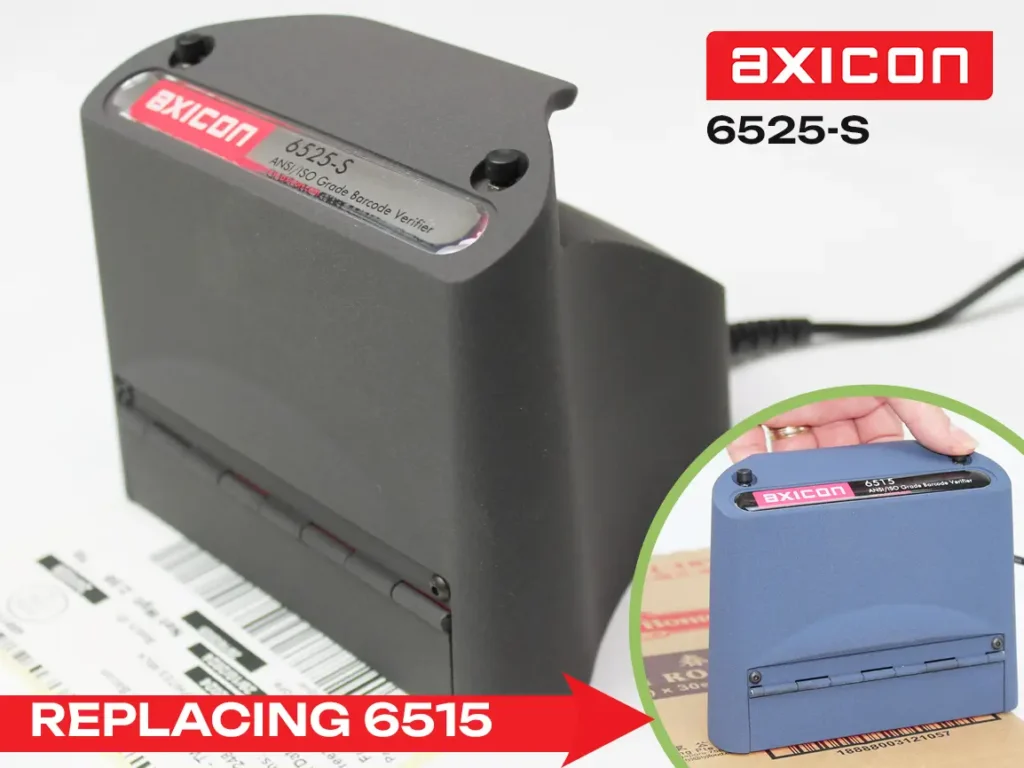

The Axicon 6525 – S is designed for all barcodes where a 5, 6, 10 or 20mil aperture is mandatory (such as EAN8, EAN13, UPC-A, UPC-E, GS1-128 and ITF-14), up to 125mm width including quiet zones. For the user who needs to verify barcodes on both consumer unit (point of sale) products and also the smaller sized traded pack barcodes – typically those printed Thermal or thermal transfer to labels).

Click for more information

Features & Benefits The “S” range of Axicon verifiers have a “Continuous Scan” feature. Just place the verifier over the barcode (or slightly above or below the barcode), press the trigger and slide the verifier over the code – in less than a second you can have results averaged over a maximum of 100 scans of the code at different points in the bar height. Hardware CCD trigger ISO compliant linear barcode verifier. Aperture automatically switchable between 5, 6,10 and 20mil. Scan width 125mm (including light margin). Wavelength of light 660 nm. Weight: 180g. Size: 145 x 113 x 128 mm. Naturally, as you would expect, the new 6525-S verifier is still fully functional with all of the features of the Axicon verification range including AI checking, Genspec checking, Product Lookup, Job Referencing, User Data, etc etc. Connectivity USB2 connection to PC. Please note that ‘S’ range verifiers cannot be used on MAC computers nor can they be used on the PV range of portable verifiers.

The Axicon 7025-S is designed for all barcodes where an 8, 10 or 20mil aperture is mandatory (such as GS1-128 and ITF-14), up to 195mm width including quiet zones. Traded Pack level (Warehouse) barcodes whether being verified on cartons, labels, corrugated board, shrink wrap film etc plus all pallet labels and linear barcodes of a similar size.

Click for more information

Features & Benefits The “S” range of Axicon verifiers have a “Continuous Scan” feature. Just place the verifier over the barcode (or slightly above or below the barcode), press the trigger and slide the verifier over the code – in less than a second you can have results averaged over a Maximum of 100 scans of the code at different points in the bar height. Hardware CCD trigger ISO compliant linear barcode verifier. Aperture automatically switchable between 8, 10 and 20mil. Scan width 195 mm (including light margin). Wavelength of light 660 nm. Weight: 1kg. Size:215 x 120 x 125 mm. Naturally, as you would expect, the new 7025-S verifier is still fully functional with all of the features of the Axicon verification range including AI checking, Genspec checking, Product Lookup, Job Referencing, User Data, etc etc. Connectivity USB2 connection to PC. Please note that ‘S’ range verifiers cannot be used on MAC computers nor can they be used on the PV range of portable verifiers.

Special Models – IP Rated, In-Line Units and Combo Sets

The Axicon 7015-IP50 has an IP50 rating (protection against harmful dust particles). The Axicon 7015-IP65 has an IP65 rating (totally sealed against all dust ingress and sealed against low pressure water spray from all directions). The IP50 rating makes the 7015-IP50 ideal for use in dusty environment while the IP65 rated version is ideal for use where a higher level of protection is required – including use in hose-down areas such as in the food industry.

Click for more information

Independently tested & certified to meet International Standards, the Axicon 7015-IP verifiers have been specifically designed for all barcodes where an 8, 10 or 20mil aperture is mandatory (such as GS1-128 and ITF-14), up to 185mm (7.28”) width including quiet zones. The simple to use design reduces user error risk and eliminates product damage whilst providing the highest level of accuracy achievable for verification. The system consists of a state of the art CCD read head and application software. Our development program means that not only will your verifier will always meet the latest ISO/ANSI standards, but in addition also a wide range of application standards including GS1-128 & ITF-14.

The Axicon In-Line 6515HS Barcode Verifier is specifically designed for use with thermal printers, the Axicon In-line Verification System utilises CCD imaging technology to provide full ISO grade verification. Identifying common problems such as damaged or dirty printheads, media movement, ribbon creasing light margin, infringements, data content & format errors. A report on the quality of every barcode is displayed instantly on-screen alerting the operator to any deterioration in quality.

Click for more info

A range of reporting tools come as standard including the ability to save the scan file of each and every barcode, or just those that fail; a spread sheet of the results and a summary of every print-run. Easy to use tools providing full auditable traceability – an integral part of any ISO9000 Quality Management system. Hardware Axicon 6515 HS as per Axicon 6500 Series but with USB2 connectivity. Printer interaction: Capable of pausing certain Zebra, Sato and TEC printer models with optional pause interface. Mounting: Variety of mounting options available. Scan rate: 150 scans/second. Analysis rate: 100 per seconds or more dependant on PC System Requirements PC with USB2 interface running Windows 2000 or XP. The verification system is delivered complete with the read head (hardware), a CD with the Axicon verifier software (in several languages), a data cable, a quick start guide, a calibration card, compliance certificates, all in a protective carry case.

The Axicon 6015/7015 Combi set is an all in one system comprising both the Axicon 6000 and the Axicon 7000 read heads aimed at verifying from the smallest to the largest linear barcodes used in general distribution of retail products (EAN-13, EAN-8, UPC-A and UPC-E, GS1 Databar, GS1-128, ITF-14, pallet labels). This easy to operate, plug and play system is perfect for product manufacturers, label printers, printers and packagers (cardboard, flexible, aluminium, corrugated cardboard, etc), pre press studios.

Click for more information

Features & Benefits ISO/ANSI verification standards & traditional verification, symbology auto-dscrimination, automatic variable aperture, scan saving & loading, static reflectance meter, display of X dimension/magnification. product look-up option. individual bar/space dimensional analysis. Hardware Two read heads. Specifications, as per the Axicon 6000 and Axicon 7000 Series. Connectivity USB or RS232 (optional) System Requirements PC running Windows (95 or later), Apple Macintosh running Mac OSX version 10.2 or later, Axicon PV-1000 portable display unit. The verification system is delivered complete with two read head (hardware), a CD with the Axicon verifier software, a data cable, a quick start guide, a calibration card, compliance certificates, all in a protective carry case

Portable Verification and Pharmaceutical Models

The Axicon PV-1000 is the most versatile option available using an existing Axicon 6000, 6500 or 7000 series verifier (with a USB connector) and simply purchasing a PV-1000 Portable Display and Collection unit. In this way the user has the full capability of a PC/Mac based verifier – but with the option to just unplug the verifier from the computer and plug it into the PV-1000 for full portability and flexibility.

Click for more information

The PV-1000 can save both a text file of the verification results and also the scan file (which can be uploaded if required into the Axicon PC software). Printed verification reports can be obtained either by using a standard serial (RS232) printer or by transferring the saved data to a PC through the use of a USB memory stick and then printing from the PC. An Optional protective rubber boot is also available if a higher level of protection is required (please note that the PV-1000 cannot be used in conjunction with an Axicon verifier from the “S” or “HS” range).

The Axicon PV-1072 is for the more price-conscious user who does not have an existing verifier and has a need to only verify the physically smaller barcodes, the PV-1072 provides the ideal solution. The PV-1072 is supplied as a complete solution with the verifier read-head included.

Click for more information

Unlike the PV-1000, the PV-1072 can only save/print the text file results of the verification (the 1072 does not have the facility to save the scan files). Please also note that the PV-1072 read head cannot be used in conjunction with a PC or Mac to provide more detailed information.

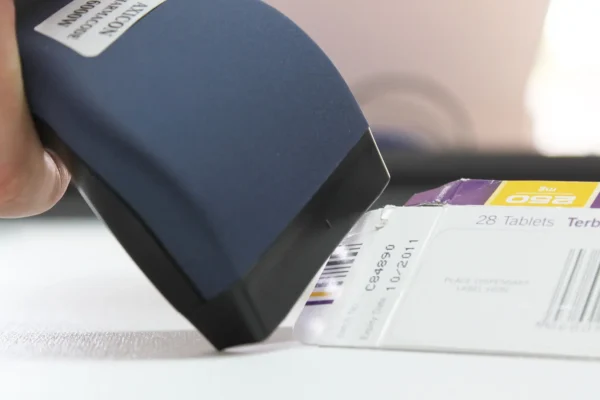

The Axicon 6000W series has the same specifications as a 6000 series but by using a different light wavelength it allows scanning of the Laetus pharmacodes with light coloured bars. Combined with a dedicated specific application, created by Axicon engineers,  it creates a verification module on its own, that applies the Laetus Pharmacode Specifications requirements for print quality.

Click here to learn more

These codes, used mostly on pharmaceutical packaging, cannot, by construction, be auto discriminated. Besides the symbology does not have a decode algorithm. For these reasons, the Laetus Pharmacode symbology can’t be integrated to our standard Axicon verifier software and the ISO/IEC 15415 print quality standard cannot be applied. For standard B/W Laetus Pharmcodes, a standard Axicon 6000 series can be used with the dedicated application to check print quality. For more information please Contact Us.

12000 Series – 2D Barcode Verification – Now End of Life (June 2018) – New 15000 to replace!

The Axicon 12000 2D barcode verifier isdesigned to give consistently highly accurate results when verifying DataMatrix and other2D barcodes. All barcodes are verified to the latest ISO, GS1 and Pharmaceutical standards.
Scan area of 25mm x 18mm. (1.0” x 0.7”).

Click for more information

The Axicon 12000 also provides a solution fora wide range of application standards including Turkish Ministry of Health & CIP. Designed for all 2D barcodes where an aperture size of 3mil or more is required (up to the scan area available – 25mm x 18mm. (1.0” x 0.7”)). Aperture size can be set manually or by specifying a required Application Standard.
The Axicon 12500 2D barcode verifier is for the user who needs to verify Datamatrix (and similar) 2D barcodes, the Axicon 12000
has been designed to meet the most stringent pharmaceutical standards and requirements.
Scan area of 37mm x 25mm. (1.45” x 1.0”).

Click for more information

All barcodes are verified to the latest ISO, GS1 and Pharmaceutical standards.The Axicon 12500 also provides a solution for a wide range of application standards including Turkish Ministry of Health & CIP. Designed for all 2D barcodes where an aperture size of 3mil or more is required (up to the scan area available – 37mm x 25mm. (1.45” x 1.0”)). Aperture size can be set manually or by specifying a required Application Standard.
The Axicon 12600 2D barcode verifier is one of the 12000 series from Axicon. It is designed to give consistent accurate results on a wide range of both linear and 2D barcodes up to a maximum size of 51mm x 38mm (including light margins).

Click for more information

All barcodes are measured to the latest ISO/ANSI and GS1 standards. With its nominal 6mil aperture that can be adjusted as appropriate to suit the barcode, the Axicon 12600 is suitable for all barcodes with an X dimension greater than 180 microns and up to a maximum physical size of 51mm x 38mm. Suitable for QR Codes, Datamatrix, Aztec, PDF417, MicroPDF as well as a range of linear barcodes.
The Axicon 12700 2D barcode verifier is one of the 12000 series from Axicon. It is designed to give consistent accurate results on a wide range of both linear and 2D barcodes up to a maximum size of 71mm x 50mm (including light margins).

Click for more information

All barcodes are measured to the latest ISO/ANSI and GS1 standards. With its nominal 5mil aperture that can be adjusted as appropriate to suit the barcode, the Axicon 12700 is suitable for all barcodes with an X dimension greater than 180 microns and up to a maximum physical size of 71mm x 50mm. Suitable for QR Codes, Datamatrix, Aztec, PDF417, MicroPDF as well as a range of linear barcodes.

NEW! 15000 Series – 1D & 2D Barcode Verification – In the one unit!

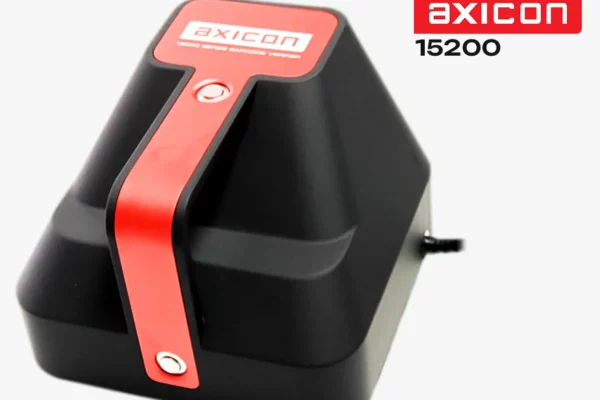

15200

Field of view: 60mm x 45mm

Smallest x-dimension of 0.150mm (aperture ref 03)

15500

Field of view: 95mm x 70mm

Smallest x-dimension of 0.200mm (aperture ref 05)

The Axicon 15000 series verifiers have been designed to read both two-dimensional and linear barcodes. GS1-128, Code 128, or Code 39 symbol

Click for more information

 The 15000 uses a special array of LEDs and a CCD-based sensor to capture each barcode image before it is analysed.  It is able to verify multiple barcodes in the same field of view, whether they are 2D or linear codes, and the user sees the results for each barcode by selecting the relevant barcode on the screen.

QR Code, GS1 QR Code, Data Matrix and GS1 DataMatrix symbols can all be verified, as can any EAN/UPC, ITF-14,

The Axicon 15000 series verifiers are powered solely from the USB2 port of a computer, so it is portable when used with a laptop computer.

 Typical Application: Smaller barcodes including retail point of sale (consumer unit) barcodes and also 2D barcodes such as Datamatrix, QR Code etc.

 Installation: Simply install the software on your computer, plug in the verifier and you can be confident that your barcodes are being checked to the highest standards. The standard software includes everything you could ever need from a barcode verifier. Traceability features include the ability to save raw data files which can also be used for remote diagnostics support capability.

The Axicon Verifier, when used in conjunction with the accurately produced calibration sheet, forms an integral part of your ISO 9000 quality control procedures. Free software updates are downloadable from our website www.axicon.com, ensuring that your verifier will remain at the leading edge.
